Factory Direct Waterproof Connectors
Made at our factory outside Knoxville TN, Connector Kings Direct Burial Connectors and Silicone Wire Nuts have been trusted by Irrigation Professionals throughout the world since 1988
Direct Burial Connector Specs

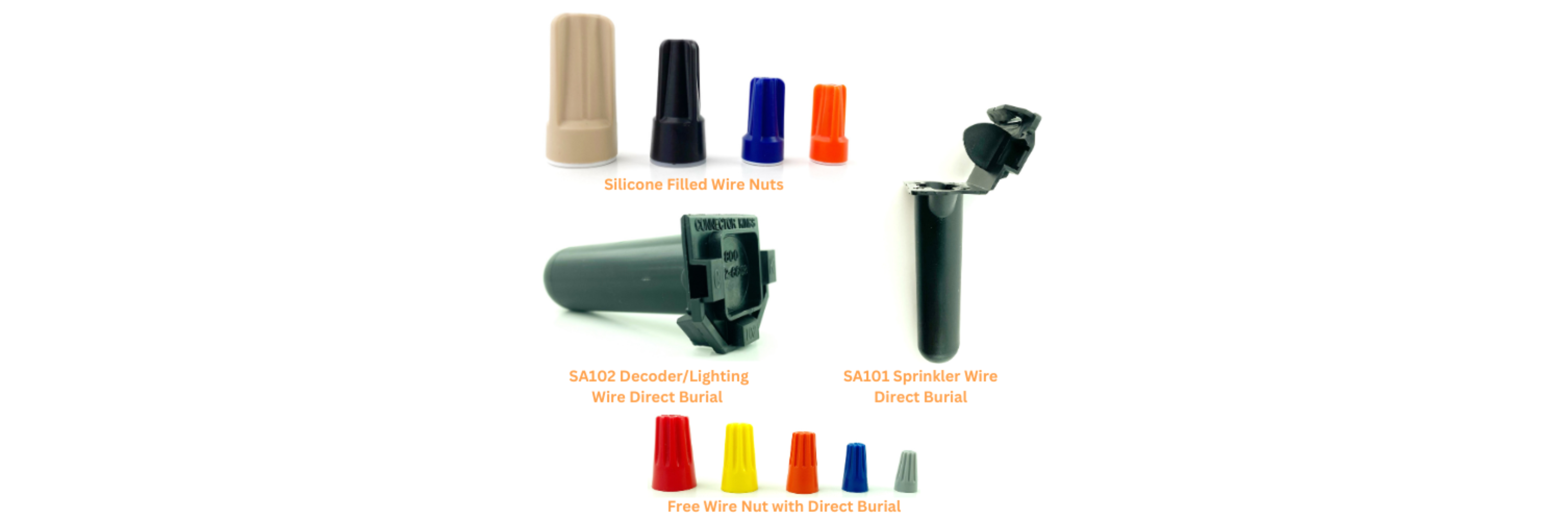

Product: 3 Wire Direct Burial Connector
with UL Listed & CSA Approved Wire Nut
Part Number: SA102
Temperature Rating: 195F
Sealant Temperature Range: -50F to 480F
Maximum Voltage: 30V
Size: 2 1⁄2” x 3⁄4”
Wire Combinations: CU/CU
Minimum Wire Gauge: 9 conductors of # 20awg
Maximum Wire Gauge: 3 conductors of # 10awg
|
Wire Combinations |
|
|
2 - 7 #18 |
1-3 #12 w/ 1 #18 |
|
2 - 6 #16 |
1-2 #10 w/ 1 #18 |
|
2 - 4 #14 |
1-3 #12 w/ 1 #16 |
|
2 - 4 #12 |
1-2 #10 w/ 1 #12 |
|
2 - 3 #10 |
1-2 #14 w/ 1 #18 |
SA102 CONNECTOR CROSS REFERENCE:
King models: king1, 2, 3, 4, 5, 6, 7, &8
3M models: DBY, DBR, 314, 316, Scotchlok 3570 Resin Pak
